IN LINE Pressure Booster Pumps
Pump is a compact In line Single Stage booster pump used for domestic and light commercial use. Pump is designed for long trouble free operation.
Application
- In line Pressure Boosting Pump used in washroom for shower bath.
- To boost the pressure for domestic purpose in Automatic Washing machine, Dishwasher and other appliances etc.
Key Features
- Silent operation, compact design and highly reliable.
- Wide performance range.
- Liquid temp. from 20°C to 90°C.
- In built thermal overload protect.
- F class insulation
| Model No. | Rating | Voltage/Frequency | Delivery Pipe Size | Current (Amp) | Speed (RPM) | Head Max (mtr) | Discharge Max (LPH) |
|---|---|---|---|---|---|---|---|

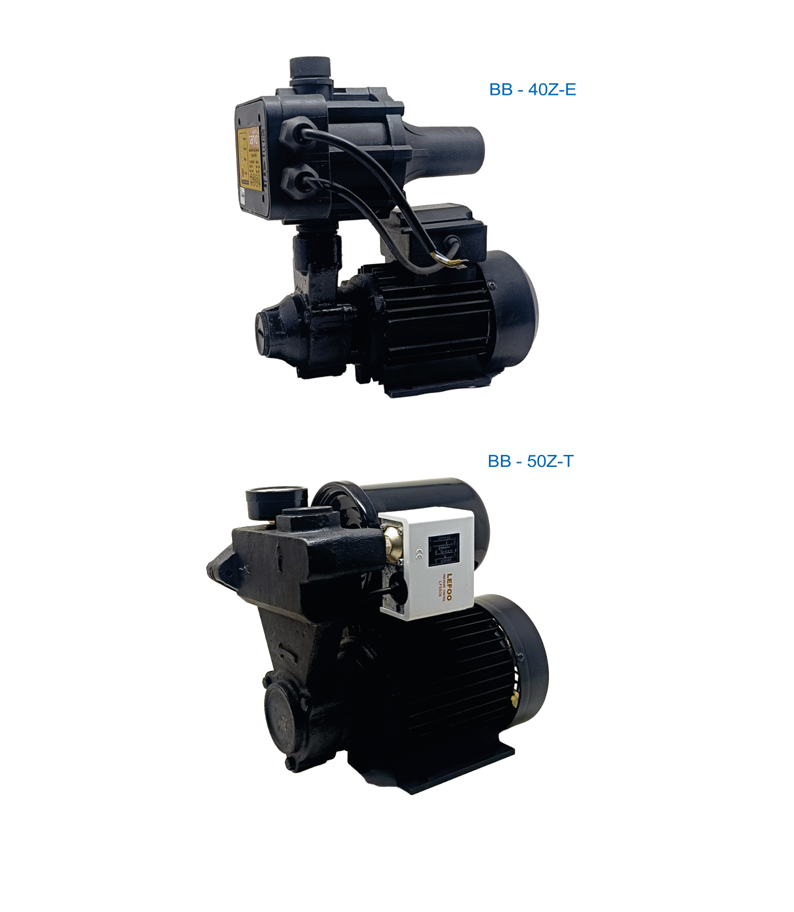

| BB - 40Z-E | 0.33kW/0.4hp | 230/50 | 1/2”x1/2” | 1.5A | 2900 | 22 | 1320 |
| BB - 50Z-T | 0.37kW/0.5hp | 230/50 | 1”x1” | 1.8A | 2900 | 32 | 1800 |
| BB - 50Z-M | 0.37kW/0.5hp | 230/50 | 1”x1” | 1.8A | 2900 | 27 | 2500 |
